HB 610 HARD BANDER

Auto weld hardfacing (wear protection pad) on drill pipe, heavy weight drill pipe, tool joint, other tools used in drilling applications including the center wear pads.

Simplified Control Panel
Automatic Step over system
Program stop on number of bands
Oscillation system (slide type 1-25 mm)
with variable speed.
450 Amp power supply (Lincoln Electric)
W ire feeder (Lincoln Electric)
Unit is equipped to weld 1/16” (1.6mm)
thru 3/32” (2.4mm) wires
Cross slide (X Axis 500 mm & Z Axis 500 mm)
Hollow Barrel Chuck with Hardened Jaws.
10” (254 mm) ID Hole in chuck and spindle
Chuck and spindle size options available 8.66”, 10” & 12.6”
Spindle speed is 0.2 to 2 RPM
Heavy Duty GMAW torch
Optional submerged arc setup
Optional tilting unit
Optional air plasma gouging & Induction heating system

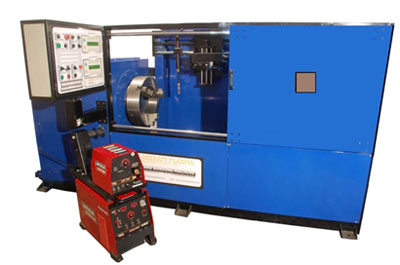

Hardbanding Machine with Power Source

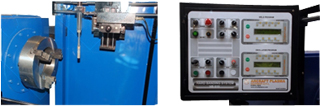

Hollow Barrel Chuck &
Oscillation System

Control Panel

Plasma Cutting Machines

For precision cutting of Stainless steel, Aluminium and all other Ferrous and Non-ferrous metals.
Stainless Steel cutting upto 150 mm thick plates.

PTA Hardfacing & Cladding

(PTA) for Hardfacing / Cladding / Reclamation & Protection of Mechanical parts.

Welding Automation

Increase Productivity and Capacity

Repeatable high quality welds

Enhance Quality

Custom made solutions

Plasma Welding

Less sensitivity to changes in
Arc length.

Micro Plasma Welding Machines

Precision welding of minature

parts

Controlled Arc at low currents

Automated welding at low

currents.

With built-in Pilot arcing system.

Micro TIG Welding Machines

Precision welding of minature parts

Ideal for smaller repair or

Assembly work.

Built-in high frequency ignition.

Welding Inverters

Light weight & compact : 80% less weight compared to conventional machines.
